The Mate Gauge S is a large scale thickness scanner designed to measure wide continuous strip materials prior to downstream operations. The Mate Gauge S can be used for real time monitoring of the incoming material specifications and generating quality reports for customers. Like all of our gauges, PLC integration is available for more advanced process control.

Tell us about your lines.

Your needs will help us determine the match with our gauges.

Odoo • Image and Text

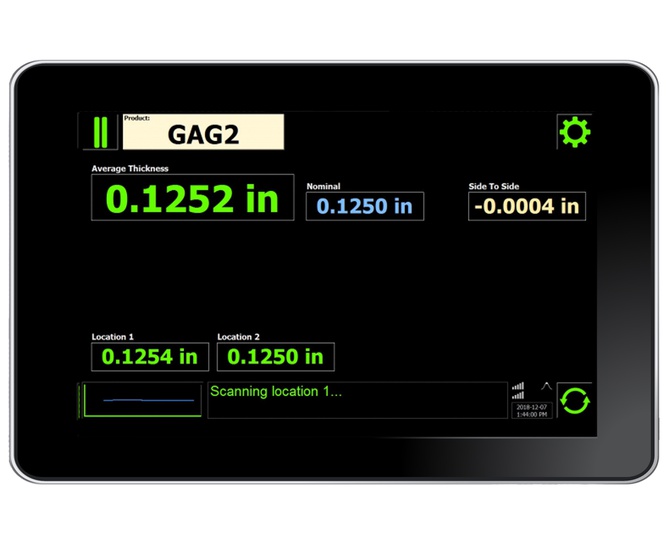

Measure what you need, where you need it.

Based on the successful Mate Gauge 3, the Mate Gauge S targets multiple regions of interest across the strip, such as right edge/center/left edge thickness. Multiple scanning modes can be easily configured to match your quality assurance methodology.

An Integrated Design

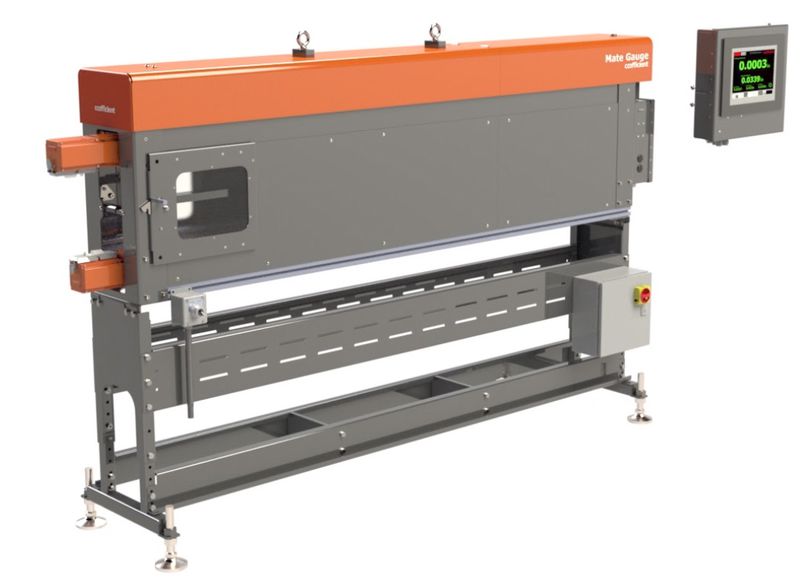

The Mate Gauge S comes with everything you need right out of the box. It's fully enclosed to protect valuable components from exposure to contaminants. Mate Gauge S also includes a convenient maintenance access port and all necessary external cabling, and can be shipped with different stand options.

Odoo • Text and Image
Odoo • Image and Text

Easily Connects to Remote I/O

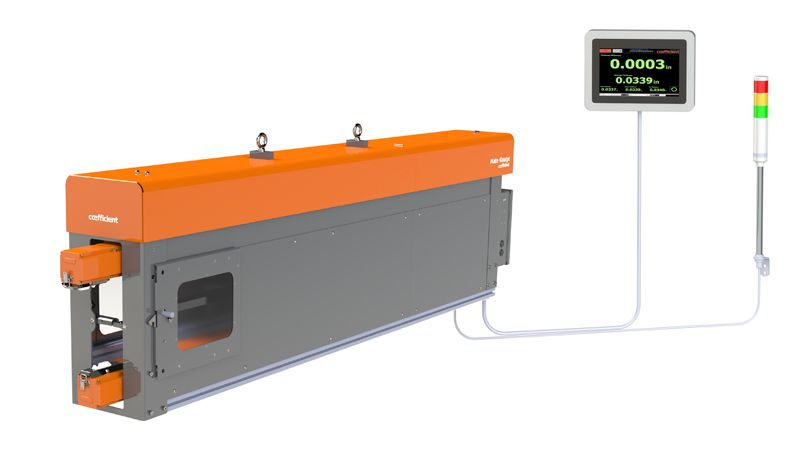

Use remote I/O control to operate the Mate Gauge S and connect it to stack lights and alarm systems that alert operators when the process is out of spec. The Mate Gauge S becomes an integral part of your production line.

A Compact C-frame

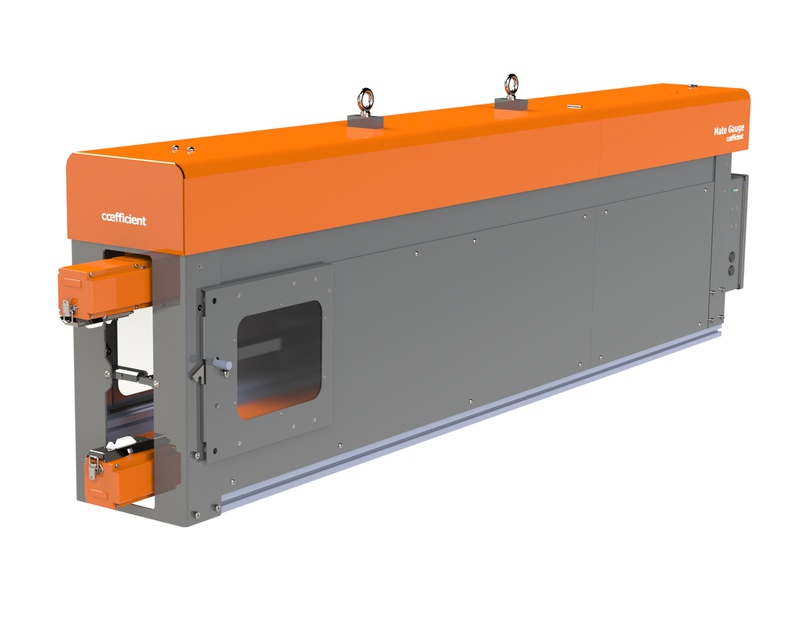

A compact solution that makes the Mate Gauge S an easy fit for any continuous strip line.

Technical Specifications

  • Average thickness display

  • Gauge and Go scanning modes

  • Product recipes (nominal thickness, warning and actions limits)

  • Data logging

  • Alarming

  • PLC and API communications options

  • Lens cleaning alarms

  • Calibration standard

Included in the package
  • 2 Laser Sensors

  • Linear Motor Actuator

  • Computing Platform and Touchscreen interface

  • Temperature Controlled Sensors

  • Thickness range: 0.01mm [0.0004 in] to 40 mm [1.6 in]

  • 0.0025 mm resolution [0.0001 in]

  • 1828 mm stroke [72 in]

  • 150 mm per second Scanning Speed (adjustable)   [6 inches per second]

  • 1 to 5 KHz Measurement Frequency

  • 2402 x 325 x 708 mm [94.6 x 12.8 x 27.9 in] , Sensor assembly, without stand

  • 400 x 400 x 118 mm [16 x 16 x 4.6 in] , Operator HMI panel (options for 10" HMI available)

  • 135 [300 lbs] , Sensor Assembly, without stand

  • 10 kg [22 lbs] , operator panel

Supply requirements
  • Power supply input: 100-240 VAC, 50-60 Hz, 2.2-4.4 A

  • Air: 12 CFM @ 90-110 PSI

  • 10oC  to 60oC  operating  temperature   [50oF to 140oF]

  • Humidity <90%
