MGX

Laser thickness measurement right out of the box.

Datasheet

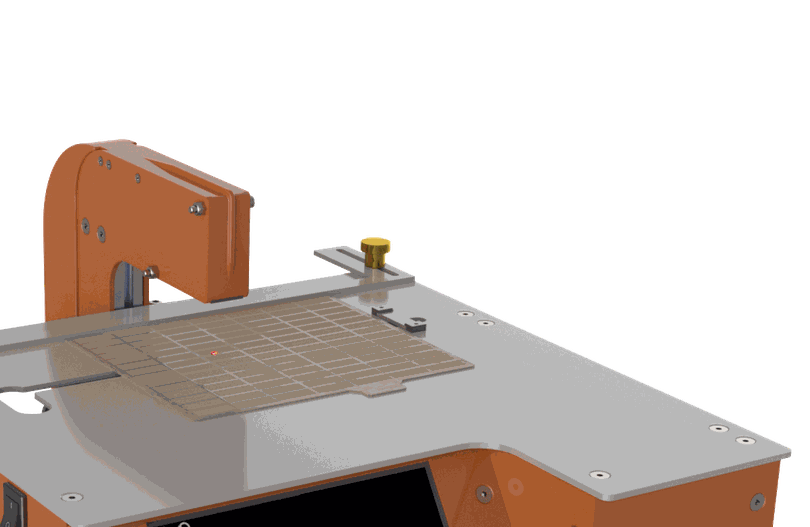

The MGX allows manufacturers to measure, record, and visualize shape and thickness. Hands free measurement means accurate results for all operators. Ready to work out-of-the box.

Web Demos Available!

We can walk you through use and features of out benchtop scanning thickness gauges.

Battle Tested Laser Gauge

Our Benchtop Mini gauges have been used by operators and quality assurance engineers in various industries. The gauge's rugged build makes it a perfect fit for both the factory floor and the testing lab.

Powerful Software

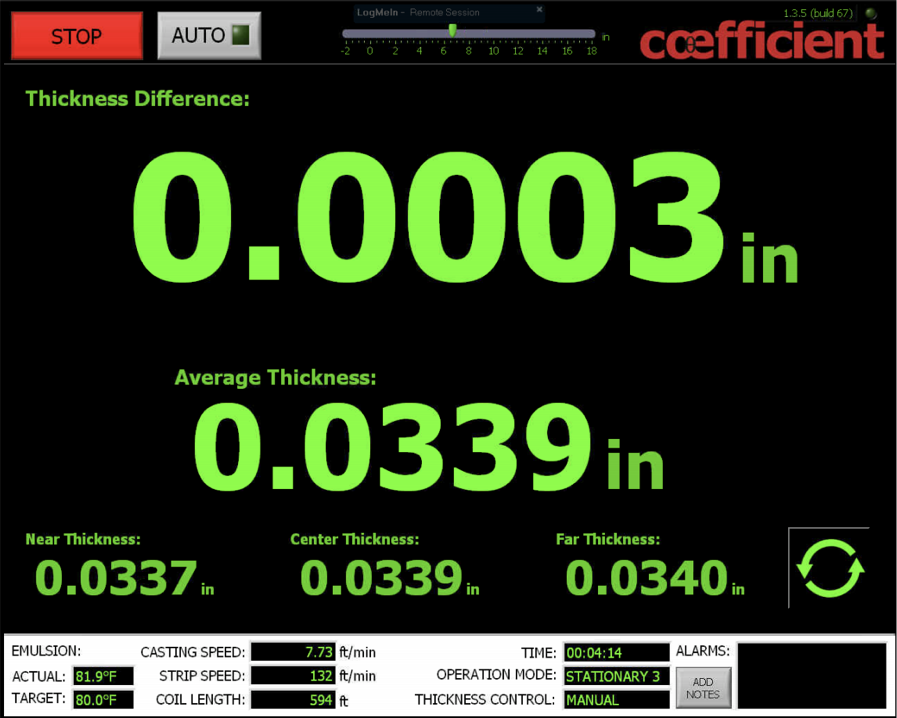

Easy-to-use software, pre-installed and ready to use. Choose your display options and easily set your tolerance and target metrics.

Measure Profile

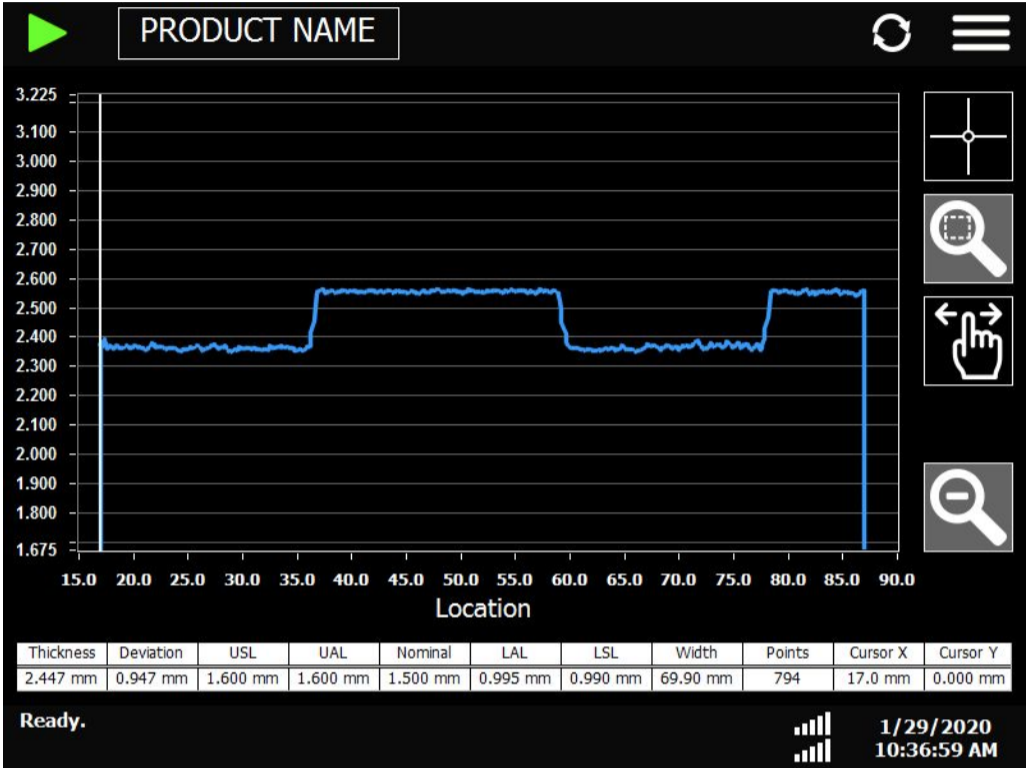

Advanced views providing full cross-sectional thickness profile and surface textures.

What's in the Box

MGX80 Available for Longer Stroke Applications

MGX80 is our longest benchtop thickness gauge, capable of reading thickness measurements up to 80". Contact us to learn more!

Contact Us

Technical Specifications

Features
  • Average Thickness Display

  • Cross-sectional Thickness Scans

  • Four corners mode

  • Product Recipes (Nominal Thickness, Warning and Actions Limits)

  • Data logging

  • Alarming

  • PLC and API Communications Options

  • Lens Cleaning Alarms

  • Calibration Standard

Included in the package
  • 2 Laser Sensors

  • Motorized Actuator

  • Computing Platform and Touchscreen Interface

  • Calibration Standard

  • Mate Gauge Thickness Capture and Processing Software

Specifications
  • 0.1 micron resolution [0.00004 in.]

  • 2 micron accuracy (typical) [0.0001 in]

  • 254 mm stroke [10 in]

  • 150 mm per second scanning speed (adjustable) [6 in per second]

  • 0 to 10 mm thickness range (typical) [0 to 0.4 in]

  • 1 to 5KHz measurement frequency

Dimensions
  • 10 kg [22 lbs]

  • 355 x 457 x 254 [14 x 18 x 10 in]

  • 10oC  to 50oC  operating  temperature   [50oF to 120oF]

  • Humidity <90%

Supply requirements
  • 2 A @ 110V/60Hz, 1 A @ 240V/50Hz
