Robust. Connected. Complete. And smart.

MG3 runs fully-featured measuring apps.

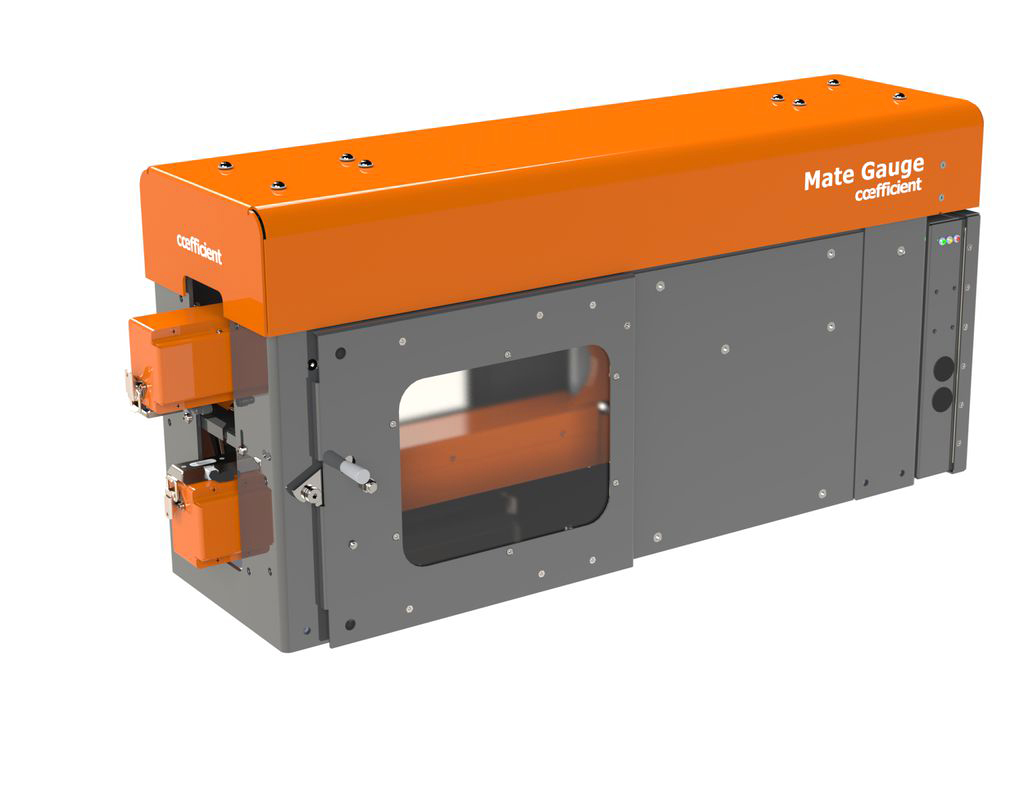

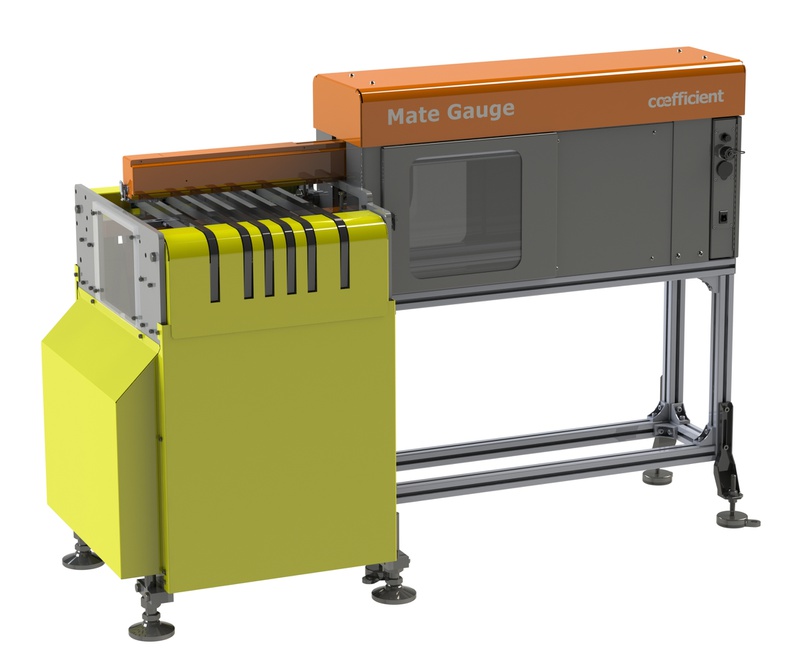

MG3


Continuous cross-strip measurements

Immune to dirt and temperature changes

Eliminates operator error

Capture thickness data throughout every run, even in the most demanding environments.


Built on the robust Mate Gauge Platform

Industry-proven
hardware


Operator-focused
software & apps


Plug-and-play data
integration


Includes the essential elements for reliable thickness measurement




The Power of Data

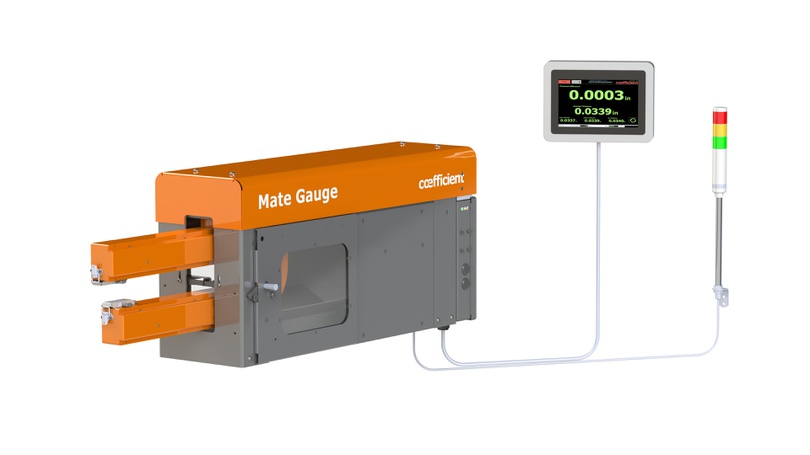

The MG3 provides data-rich thickness readings of the scanned material. It can automatically take measurements in multiple locations, provide a cross sectional view of the material, and display relevant information on the included operator screen.

MG3 Notable Features

Average and zones thickness displays

Gauge and Go or Scan Capture Scanning Modes

Customizeable Alarms

PLC and API Communications Options

Lens Cleaning Alarms

Calibration standard

Operator-friendly apps give your team quick visibility and insights

Live Measurements

Product Filtering

Customizable View

Data File Downloads

Line Statistics

Key Specifications



0.5 micron resolution

1 micron accuracy (30mm sensor option)

515 mm stroke [20.28 in]

0 to 8 mm or 0 to 20 mm Thickness Range

1 to 5 KHz Measurement Frequency

Technical Specifications

Features
  • Average Thickness Display

  • Gauge and Go Scanning Modes

  • Product Recipes (Nominal Thickness, Warning and Actions Limits)

  • Data logging

  • Customizable Alarms

  • PLC and API Communications Options

  • Lens Cleaning Alarms

  • Calibration Standard

Included in the package
  • 2 Laser Sensors

  • Linear Motor Actuator

  • Computing Platform and Touchscreen interface

  • Temperature Controlled Sensors

Specifications
  • 0.5 micron resolution [0.00002 in.]

  •  4 micron accuracy (typical) [0.00016 in]

  • 515 mm stroke [20.28 in]

  • 150 mm per second Scanning Speed (adjustable) [6 inches per second]

  • 0 to 20 mm Thickness Range (typical) [0 to 0.79 in]

  • 1 to 5 KHz Measurement Frequency

Dimensions
  • 779 x 497 x 238 mm [31 x 20 x 9 in] , Sensor Assembly

  • 488 x 450 x 118 mm [19.2 x 18.1 x 4.6 in.] , Operator HMI Panel (Options for 10" HMI available)

  • 49 kg [108 lbs] , Sensor Assembly

  • 10 kg [22 lbs] , Operator Panel

Supply requirements
  • 4.4 A @ 115V / 60Hz, 2 A @ 240V/50Hz

  • Air: 12 CFM @ 90 PSI

Environmental
  • 10°C  to 50°C operating temperature [50°F to 120°F]

  • Humidity <90%
