NOTE: The MG Mini has been replaced by the MGX.

Odoo • Image and Text

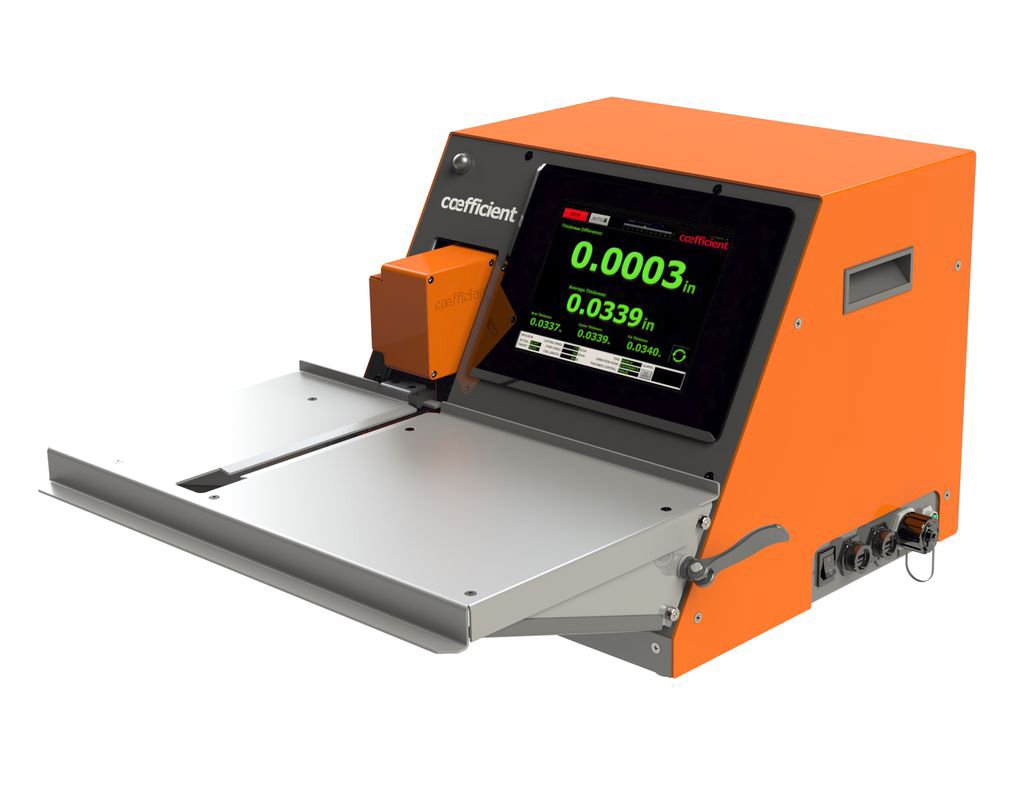

MG Mini

Measure early, measure often.

The Mate Gauge Benchtop Mini helps manufacturers measure, record, and profile shape and thickness. Hands free measure means more accurate results for all operators. Ready to work out-of-the box.

Web Demos Available!

We can walk you through use and features of out benchtop scanning thickness gauges.

 Battle Tested Laser Gauge

Our Benchtop Mini gauges have been used by operators and quality assurance engineers in various industries. The gauge's rugged build makes it a perfect fit for both the factory floor and the testing lab.

Odoo • Image and Text

Powerful Software

All benchtops include an easy-to-use software, pre-installed and ready to use. Choose from several measuring outlays and easily set your tolerance and target metrics.

Measure the Entire

Plate Profile

If you choose a more advanced view, the scanning thickness gauge provides a full cross-sectional thickness profile and shape profile.

Odoo • Text and Image

Technical Specifications

  • Average Thickness Display
  • Gauge and Go Scanning Modes
  • Product Recipes (Nominal Thickness, Warning and Actions Limits)
  • Data logging
  • Alarming
  • PLC and API Communications Options
  • Lens Cleaning Alarms
  • Calibration Standard
  • 2 Laser Sensor
  • Linear Motor Actuator
  • Computing Platform and Touchscreen Interface
  • Temperature Controlled Sensors
  • 0.1 micron resolution [0.00004 in.]
  • 2 micron accuracy (typical) [0.0001 in]
  • 198 mm stroke [7.8 in]
  • 150 mm per second scanning speed (adjustable) [6 in per second]
  • 0 to 8 mm thickness range (typical) [0 to 0.3 in]
  • 1 to 5KHz measurement frequency
  • 595 x 550 x 335 [24 x 22 x 12 in]
  • 23 kg [51 lbs]
  • 10C to 50C Operating Temperature [50f to 120f]
  • Humidity <90%
Supply requirements
  • 1 A @ 110V/60Hz, 2 A @ 240V/50Hz
