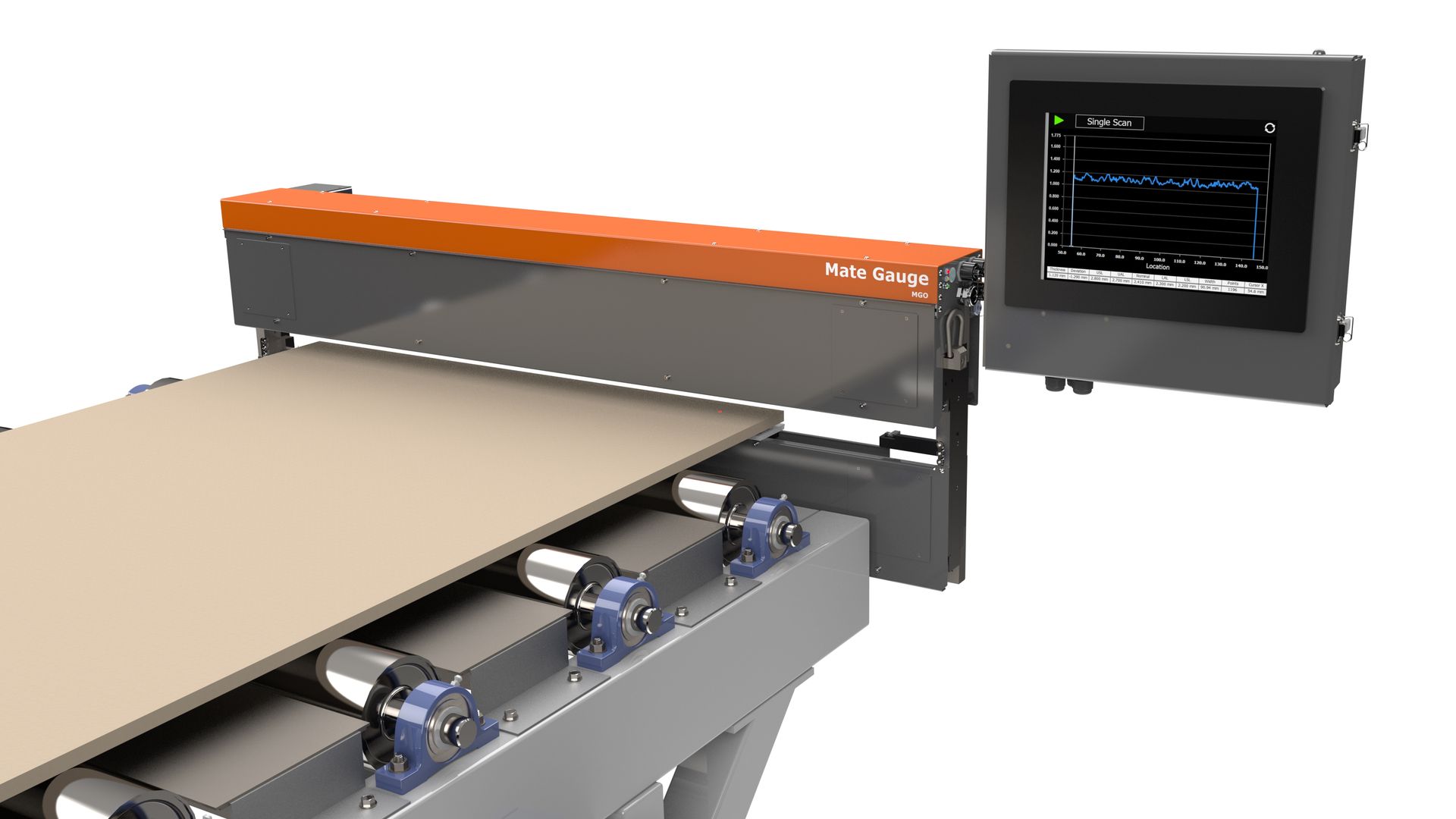

Mate Gauge MGO

Reliable gauge, with no added space

The MGO provides the same reliable measurements, but takes up no additional space. Mounting directly to the line, the MGO helps manufacturers measure and record thickness data.

Find out if an O-frame is right for you!

We can walk you through use and features of our inline scanning thickness gauges.

Extra Long Stroke

MGO is configurable with up to a 1200 mm stroke length. Meeting all your width needs.

Odoo • Image and Text

Powerful Software

MGO includes easy-to-use software, pre-installed and ready to use. Choose from several measuring outlays and easily set your tolerance and target metrics.

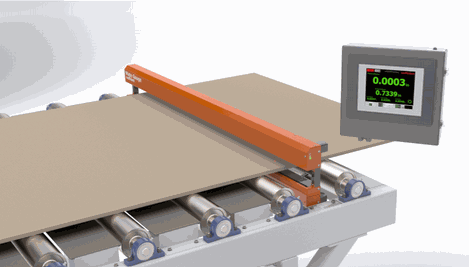

Keep Floorspace Open

Blending seamlessly to your line, the MGO provides accurate measurements without sacrificing valuable space around your line.

Odoo • Text and Image

Technical Specifications

Features
  • Average Thickness Display

  • Gauge and Go Scanning Modes

  • Product Recipes (Nominal Thickness, Warning and Actions Limits)

  • Data logging

  • Alarm

  • PLC and API Communications Options

  • Lens Cleaning Alarms

  • Calibration Standard

Included in the package
  • 2 Laser Sensors

  • Linear Actuator

  • Computing Platform and Touchscreen Interface

  • Protective housing with sliding doors

Specifications
  • 0.5 micron resolution [0.00002 in.]

  • 10 micron accuracy (typical) [0.0001 in]

  • 1200 mm stroke [48 in]

  • 150 mm per second scanning speed (adjustable) [6 in per second]

  • 0 to 20 mm thickness range (typical) [0 to 0.8 in]

  • 1 to 5KHz measurement frequency

Environmental

  • 10oC  to 50oC  operating temperature  [50oF to 120oF]

  • Humidity <90%

Supply requirements
  • 6 A @ 110V/60Hz  [3 A @ 240V/50Hz]

  • 10 CFM @ 90 PSI
